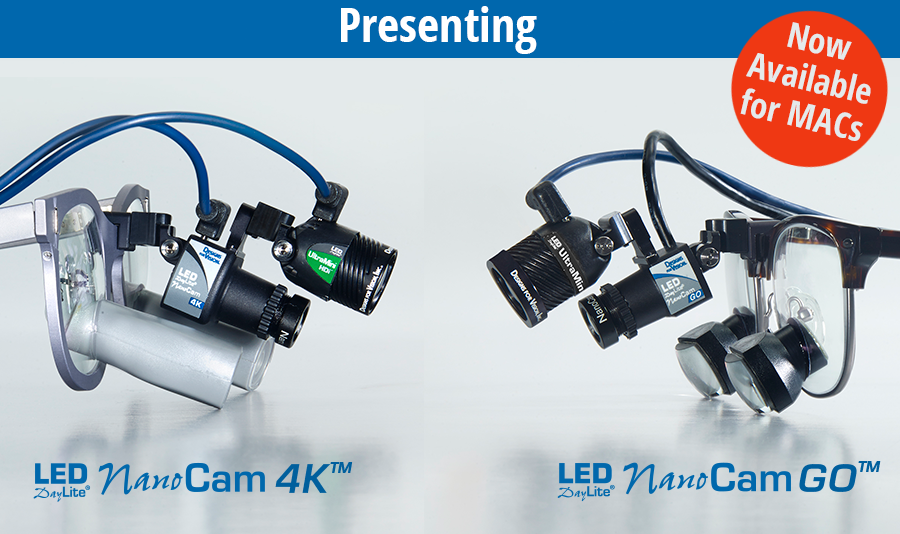

NanoCam 4KTM OR NanoCam GOTM
DOCUMENT
Digitally insert HiDef video and images into patient record
BROADCAST
Transmit real time first person view to entire surgical team
RECORD
Record Surgeon's point of view – an invaluable tool for instruction.
FEATURES
– Your choice of two compact Hi Def cameras: 4K (4K / 13MP) and GO (1080P / 3.4MP)
– Easy to use, bluetooth enabled wireless foot-pedal for hands-free operation.
– NEW camera sensor reduces auto exposure and blooming in bright light
– Added horizontal alignment adjustment for more accurate pictures and videos
–
Superior Low Light recording/photo ability
– Your choice of the MODULAR components you require, or the COMPLETE SYSTEM

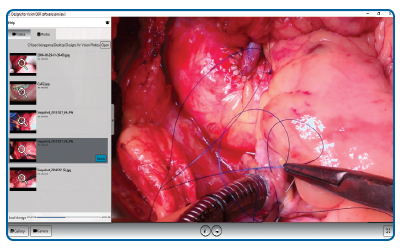

DBR SOFTWARE
Document Broadcast and Record
with easy to use DBR software:
Stable and intuitive to use
True Color Rendition
HIPAA Compliant
24/7 Support
SPECIFICATIONS
Camera |
NanoCam 4K |
NanoCam GO |
Resolution & Megapixels |
4K, 1080P 13 megapixels |
1080P, 720P 3.4 megapixels |
Weight |
31g without headight 51g with headlight |
14g without headight 34g with headlight |
Camera Dimensions |
1.015”L x .986” W |
812” L x .757” W |
Camera Dimensions |
1.625” L x .986” W |
1.38” L x .757” W |
Lens Magnification |
16 mm: 2.0X 25 mm: 3.0X |
|
Software |
DBR Software Version: 1.1.3 |
|
Headlight |
Can be used with your choice of LED DayLite HDi Headlights: UltraMini, DayLite and UltraMini PS
|
|
Cable |
Removable |
Hardwired USB |
System |
Windows Mac Android |
Windows Mac Android |
Footpedal |
Bluetooth Enabled Wireless |
|
Compliance |
EUMDR Approved, IEC 60601 |
|

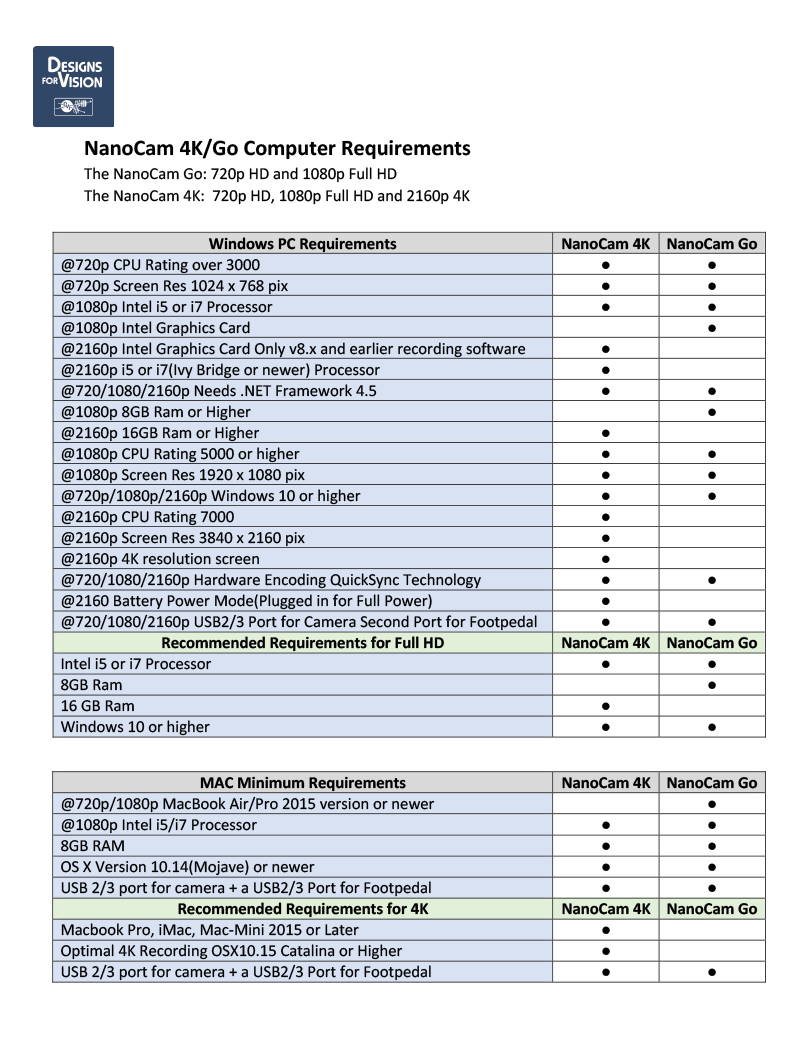

SYSTEM REQUIREMENTS
